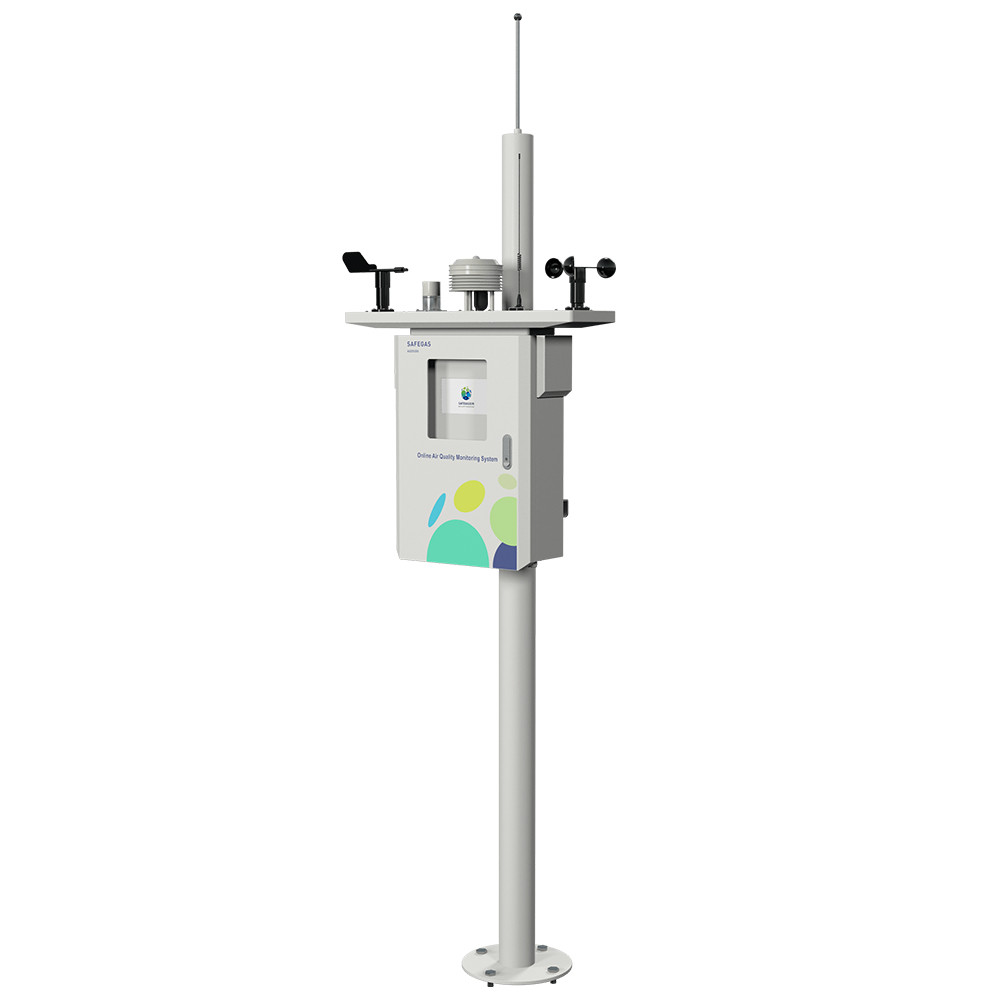

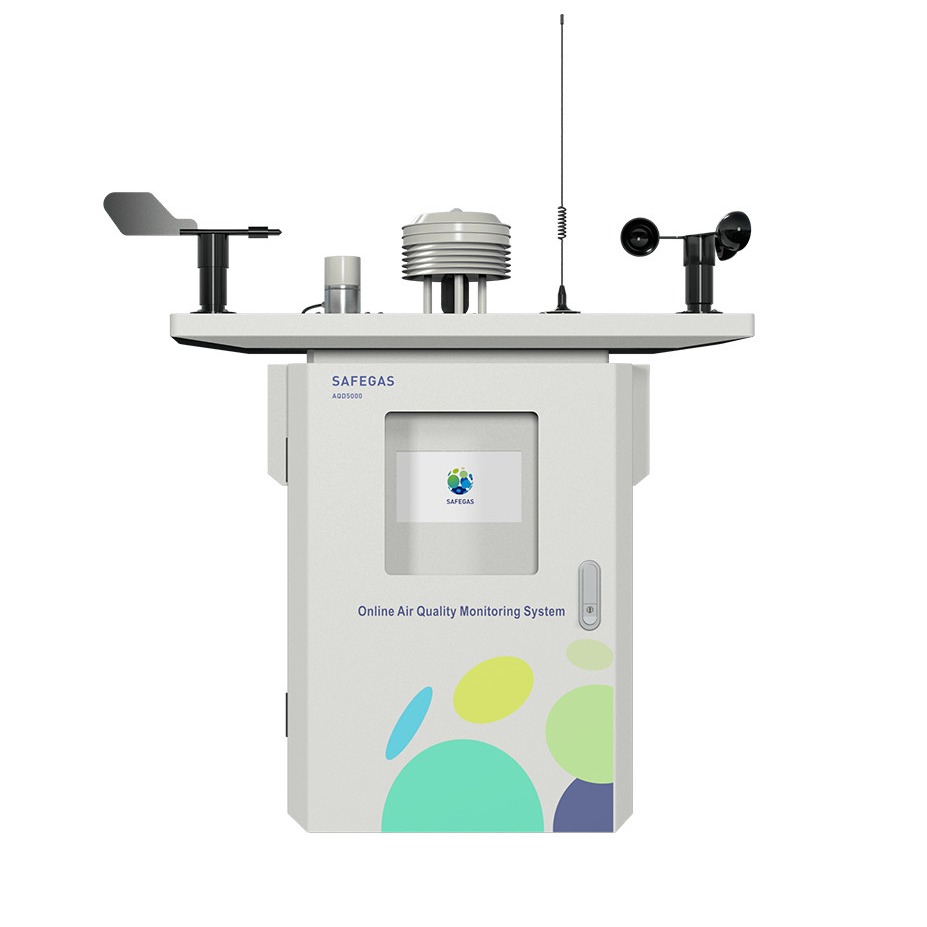

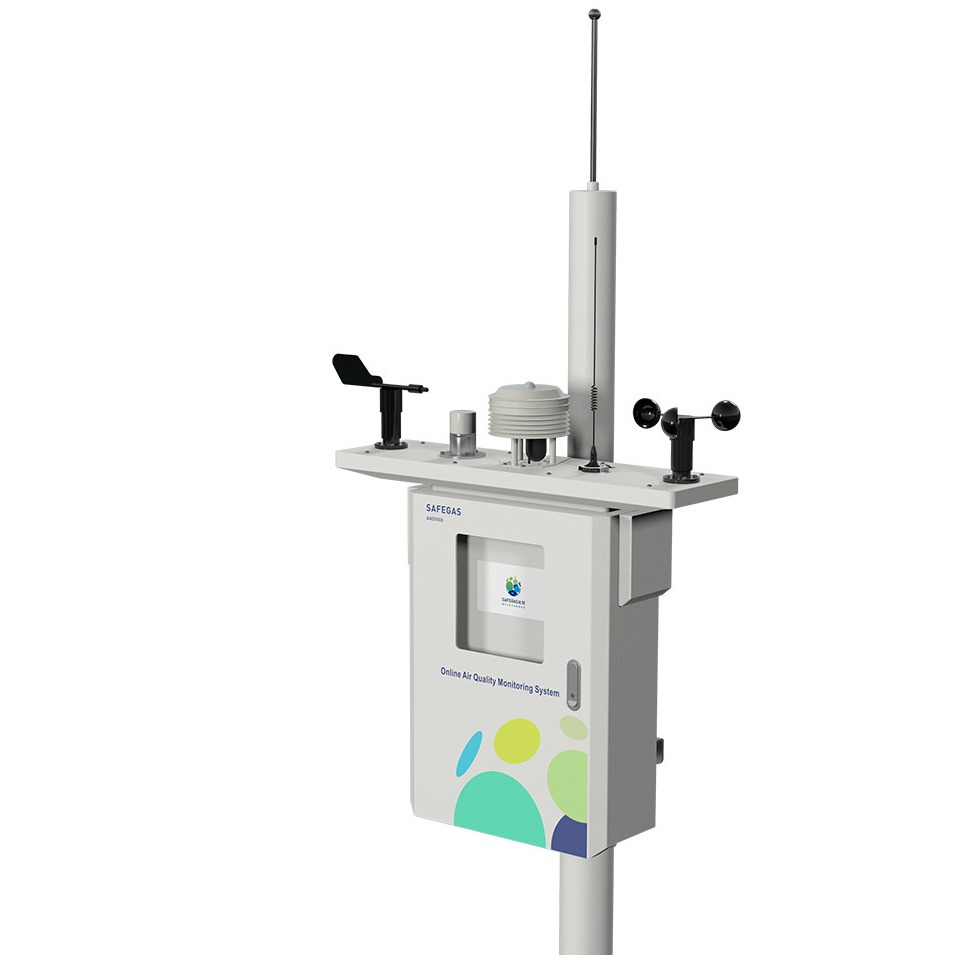

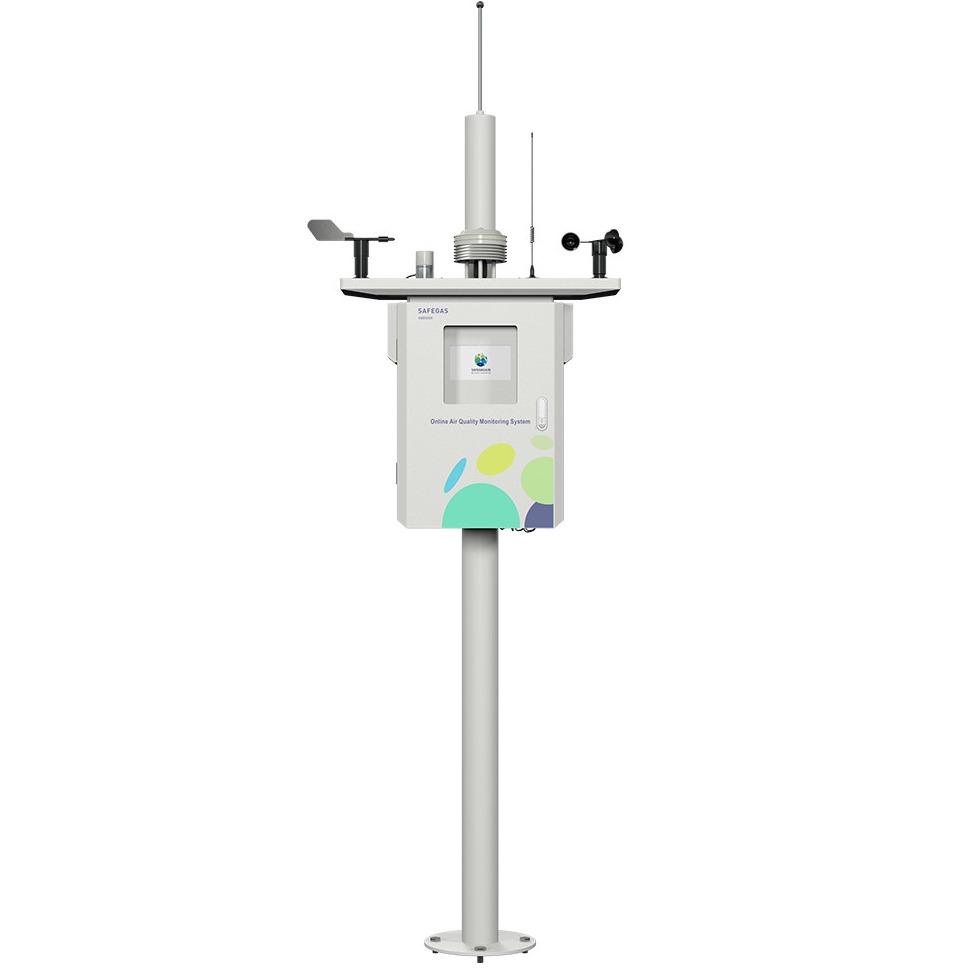

AQD5000 Ambient Air Quality Monitoring System with 7-in-1 Gas Detection, PM2.5/PM10, Meteorology, 7″ Touch Screen, and RS485/4G/LoRA Connectivity

Comprehensive 7-in-1 monitoring solution combining gas detection, particulate matter measurement, and meteorological data collection in a single outdoor-rated system.

A low-cost, intelligent ambient air quality monitoring system for urban and industrial areas. Simultaneously measures up to 9 gas parameters (ppb level), particulate matter (PM2.5/PM10), and meteorological factors (temp, humidity, wind, pressure, light, noise). Features 7-inch color touch screen, professional outdoor shield (dust/rain proof), double flowmeter, RS485 output, optional 4G/LoRa wireless, and ≥2 years data storage. Works 7×24h with fault self-diagnosis and auto-restart. Optional solar panel, LED display, camera, and weather vane/anemometer. Ideal for urban grid monitoring, industrial parks, schools, tunnels, and environmental assessment.

The AQD5000 is a new-generation low-cost intelligent ambient air quality monitoring system, widely used in urban air quality monitoring and industrial emission monitoring. It can simultaneously measure multiple pollutants, particulates, and meteorological parameters, and transmit data to a cloud platform via a wireless acquisition terminal for remote control.

The system uses imported high-sensitivity gas sensors (electrochemical, PID, IR, etc.) with response down to ppb level, high resolution, and good linearity. A professional outdoor shield ensures dust-proof, rain-proof, and stable operation in high/low temperatures. The double flowmeter design controls positive/negative pressure gas flow, ensuring data consistency and accuracy.

A 7-inch color touch screen provides easy local data viewing. The system supports RS485 output, and optional PC software, 4G DTU (upload to environmental bureaus), LoRa wireless (up to 3.5 km), and camera for real-time video and dust monitoring. An optional solar panel allows off-grid operation, and an outdoor LED display can show real-time data.

Data storage is standard: at least 2 years of monitoring data can be stored locally. The system can work 7×24h continuously with fault self-diagnosis and automatic restart. Maintenance is low – only regular filter element replacement is recommended. An activated carbon tube option improves detection stability and has CCEP China environmental certification.

• Multi-parameter monitoring – Up to 9 gases + PM2.5/PM10 + temperature + humidity + wind speed/direction + pressure + light + noise.
• ppb-level detection – Using imported electrochemical, PID, and IR sensors.
• 7-inch color touch screen – Easy local data viewing and operation.
• Outdoor protection – Professional dust/rain shield, stable in extreme temperatures.
• Double flowmeter – Controls positive & negative pressure for consistent accuracy.
• 7×24h continuous operation – Auto fault diagnosis, auto restart.
• Long data storage – ≥2 years of historical data.
• Flexible signal output – RS485 standard; optional 4G DTU, LoRa (3.5km), camera, PC software.
• Low maintenance – Replace filter regularly; optional activated carbon tube (CCEP certified).
• Optional solar power – For remote sites without mains electricity.
• Optional outdoor LED display – Real-time public viewing.
• Optional meteorological sensors – Wind vane, anemometer, rain gauge, UV light meter, etc.

Other ranges available upon request (see data sheet).

• Urban air quality monitoring – Short/long-term trend analysis.
• Grid monitoring – Provinces, cities, counties, towns.
• Sensitive areas – Schools, hospitals, communities.
• Industrial parks – Petrochemical plants, power plants, landfills, incinerators, sewage plants.
• Transportation – Roads, airports, ports, railways, tunnels, construction sites.
• Public spaces – Parks, woodlands, agricultural research areas.
• Emission monitoring – Particulate and pollution source tracking.
• Environmental impact assessment – Baseline and compliance studies.

1. How many parameters can the AQD5000 monitor at once?
Up to 9 gas parameters plus PM2.5/PM10 and meteorological factors (temp, humidity, wind, pressure, light, noise).

2. What is the detection limit for toxic gases?
Down to ppb level (e.g., 1 ppb for SO₂, NO₂, O₃).

3. Does the system work outdoors in rain or dust?
Yes. It comes with a professional outdoor shield that is dust proof and rain proof.

4. How is data transmitted?
Standard RS485. Optional 4G DTU (upload to cloud or environmental bureau), LoRa (up to 3.5 km wireless), and camera for video.

5. Can it run on solar power?
Yes, an optional solar panel allows operation where mains power is unavailable.

6. How long can data be stored locally?
At least 2 years of continuous monitoring data.

7. What maintenance is required?
Periodic replacement of the filter element is recommended. An optional activated carbon tube (CCEP certified) improves stability.

8. Is there a large public display option?
Yes, an outdoor LED screen can show real time data for public viewing.

9. Can I view data remotely on my computer?
Yes, with optional PC software or 4G DTU you can view real time and historical data remotely.

10. Is the system certified in China?
The system with an optional activated carbon tube has obtained CCEP China Environmental Certification.

Note: Sensors (gas, PM, meteorological) are integrated into the main box. Please specify required parameters when ordering.
