| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Safegas |
| إصدار الشهادات: | ATEX/IECEx |
| رقم الموديل: | SG100-D |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 5 أيام عمل |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 100 قطعة/يوم |
| مادة: | الألومنيوم المصبوب | اكتشف الغاز: | CO، H₂S، O₂، LEL |
|---|---|---|---|
| مبدأ الكشف: | الكهروكيميائية (CO، H₂S، O₂)؛ الاحتراق الحفاز (LEL) | وقت الاستجابة (T90): | <60 ثانية |
| درجة الحماية: | IP66 / IP68 | جهد العمل: | 12 – 30 فولت تيار مستمر |
| رطوبة العمل: | 10 - 95% رطوبة نسبية (بدون تكاثف) | ضغط العمل: | 91 - 111 كيلو باسكال |

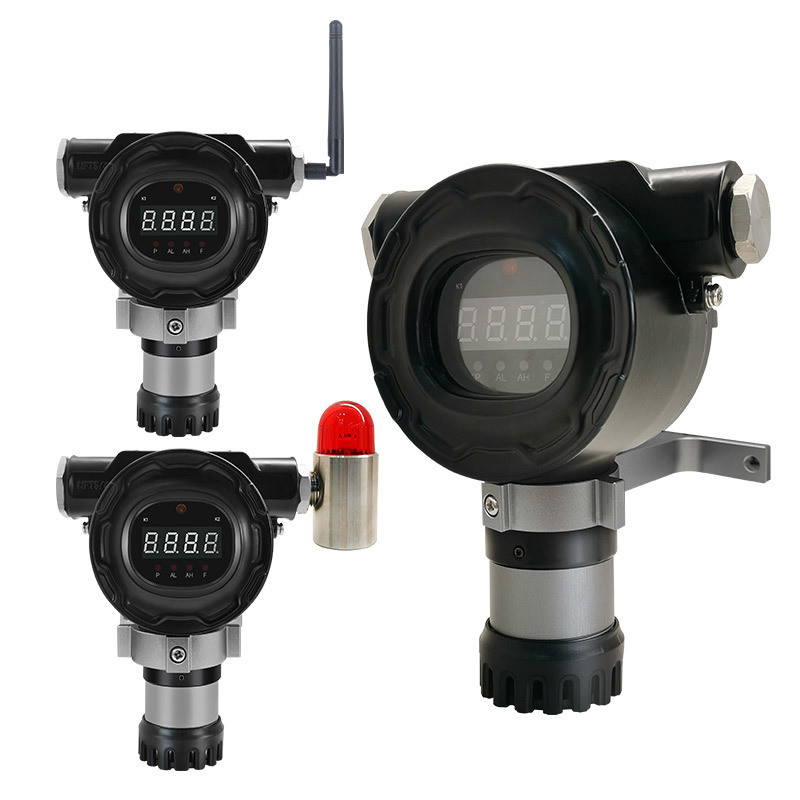

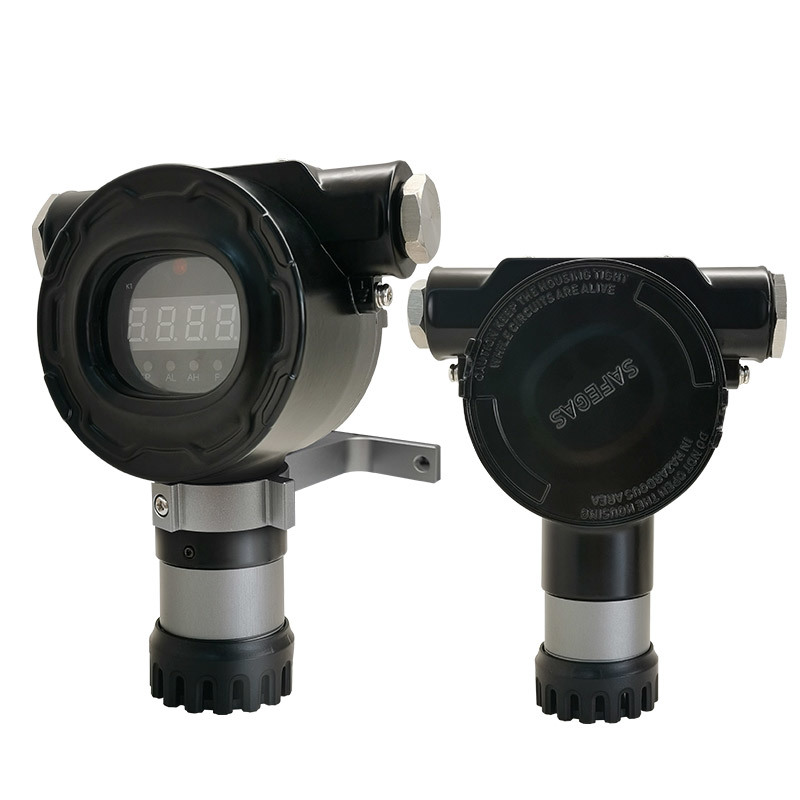

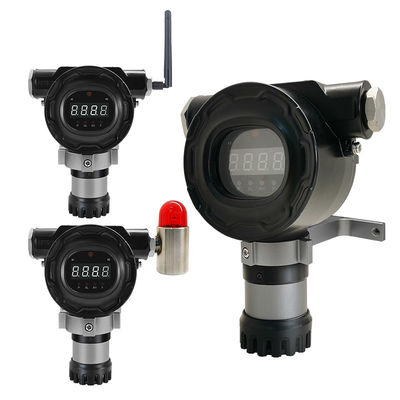

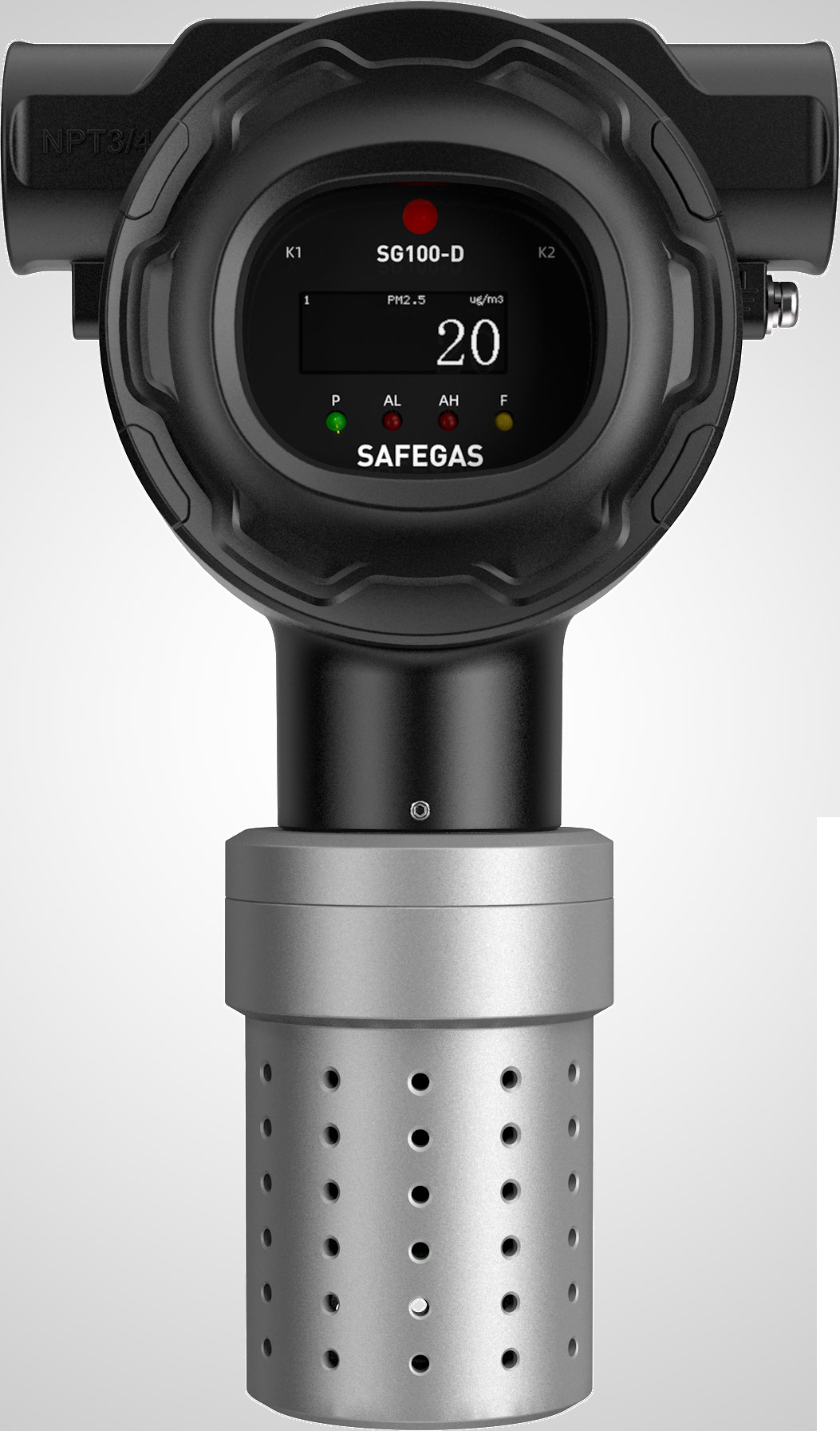

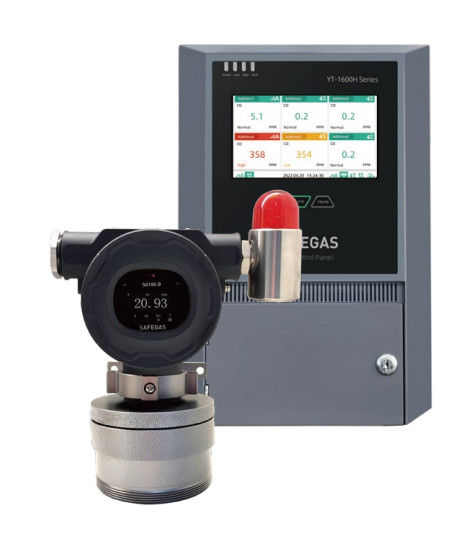

The SG100-D series is an intelligent, hot-swappable fixed multi-gas detector designed for continuous monitoring of up to four gases simultaneously in hazardous environments. It is IECEx and ATEX certified with explosion-proof grade Ex db IIC T6 Gb (intrinsically safe), making it suitable for Zone 1 and Zone 2 areas.
| Gas | Principle | Measuring Range | Resolution |
|---|---|---|---|
| CO | Electrochemical | 0 - 1000 ppm | 1 ppm |
| H₂S | Electrochemical | 0 - 100 ppm | 0.1 ppm |
| O₂ | Electrochemical | 0 - 30% VOL | 0.1% VOL |
| LEL (Combustible) | Catalytic combustion | 0 - 100% LEL | 1% LEL |
| Gas Detected | CO, H₂S, O₂, LEL (other combinations available) |
| Detection Principle | Electrochemical (CO, H₂S, O₂); Catalytic combustion (LEL) |
| Response Time (T90) | <60 seconds (depends on sensor) |
| Explosion-Proof Grade | IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Grade | IP66 / IP68 |
| Working Voltage | 12 - 30V DC |
| Working Temperature | -40°C ~ +70°C (catalytic); -20°C ~ +50°C (electrochemical) |
| Dimensions | 178 × 129 × 90 mm |
| Weight | 1.4 kg (without mounting bracket, alarm light) |
| SG100-D gas detector (with pre-installed CO/H₂S/O₂/LEL sensors) | 1 unit |
| Magnetic wand | 1 piece |
| User manual | 1 copy |
| Certificate of conformity / Warranty card | 1 copy |
| Mounting plate | 1 piece |
| M4 bolts, nuts, screw pads, flat mats | 3 each |
Optional: 4-20mA expansion board, LoRa/4G module, mounting bracket, alarm light.
Shenzhen YuanTe Technology Co., Ltd. (Safegas) - Founded in 2010, a national high-tech enterprise specializing in R&D, production and sales of gas detection equipment and systems. With over 16 years of experience, the company serves petrochemical, oil & gas, environmental, municipal, food and pharmaceutical industries. Products are ISO9001 & ISO45001 certified, holding IECEx, ATEX and EMC certifications. Annual capacity exceeds 80,000 units. Fast delivery (5-7 working days) and 24/7 after-sales support are available.
