| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | SAFEGAS |
| إصدار الشهادات: | ISO CE CNEX |
| رقم الموديل: | Sky3000 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 3 أيام عمل |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 1000 قطعة في الشهر |
| غاز: | O3 | مقياس المدى: | 0-10 جزء في المليون |
|---|---|---|---|
| دقة: | 0.001 جزء في المليون | نوع المستشعر: | الكهروكيميائية |
| طريقة أخذ العينات: | انتشار | مادة: | ABS + حافظة جلدية |
| عرض: | شاشة رسومية LCD أحادية اللون بمصفوفة نقطية 128*128 | وضع الإنذار: | الصوت والضوء والاهتزاز |
| بطارية: | بطارية ليثيوم قابلة للشحن بقوة 3.7 فولت، بسعة 2500 مللي أمبير في الساعة | وحدة: | جزء في المليون، ملغم/م3، %VOL، %LEL |
| حجم العبوة الواحدة:: | 131 سم * 83 سم * 35 سم | وزن:: | 240 جرام |
| درجة الحماية: | IP65 |

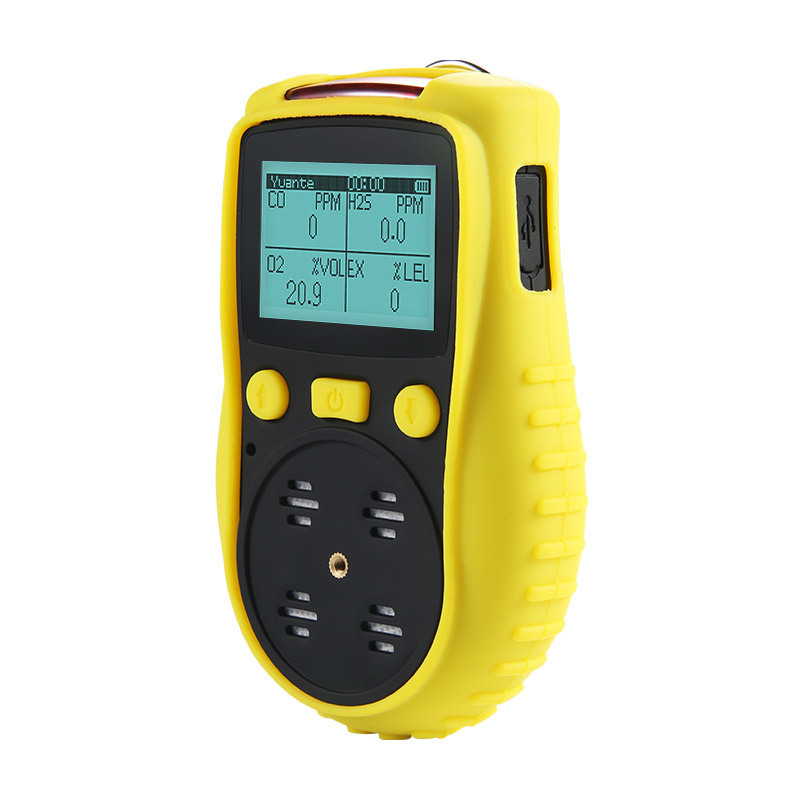

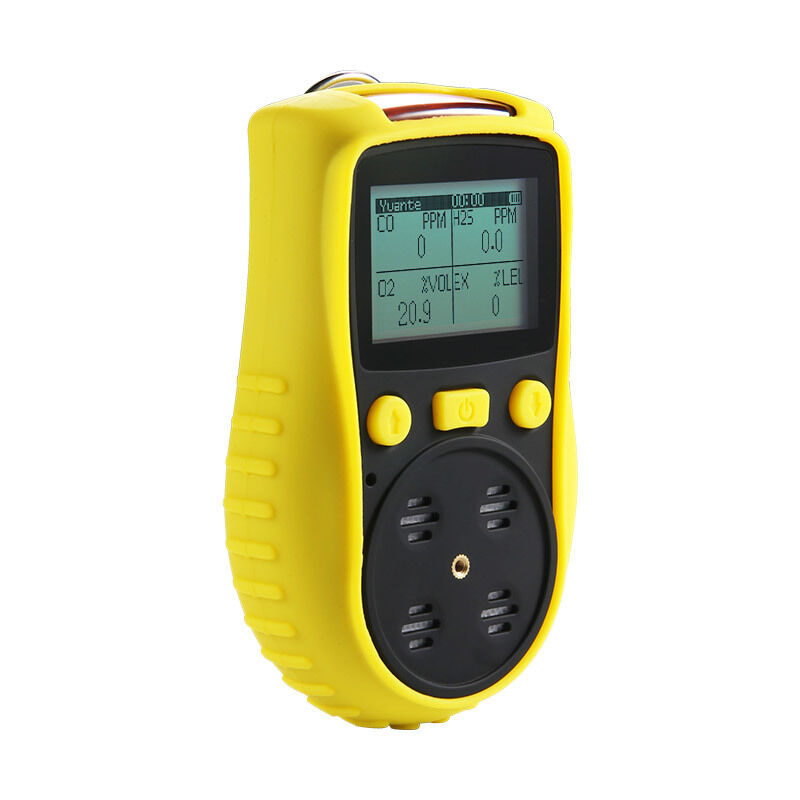

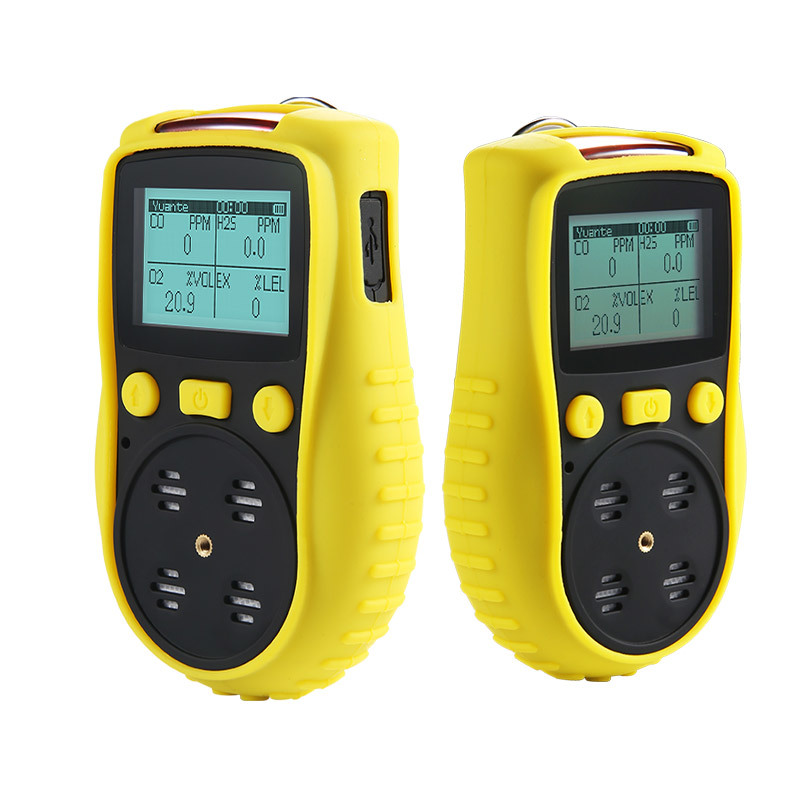

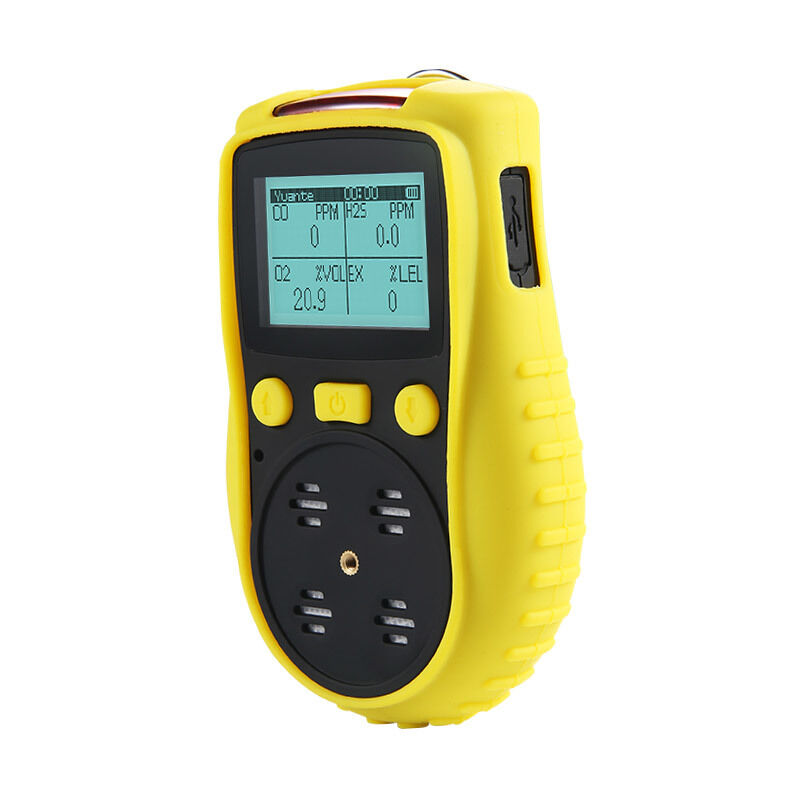

YT-1200H Portable Gas Detector
The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
