| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | SAFEGAS |
| إصدار الشهادات: | ISO CE CNEX |
| رقم الموديل: | Sky3000 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 3 أيام عمل |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 1000 قطعة في الشهر |
| غاز: | HCL | مقياس المدى: | 0-100ppm |
|---|---|---|---|
| دقة: | 0.1 جزء في المليون | نوع المستشعر: | الكهروكيميائية |
| طريقة أخذ العينات: | انتشار | مادة: | ABS + حافظة جلدية |
| عرض: | شاشة رسومية LCD أحادية اللون بمصفوفة نقطية 128*128 | وضع الإنذار: | الصوت والضوء والاهتزاز |
| بطارية: | بطارية ليثيوم قابلة للشحن بقوة 3.7 فولت، بسعة 2500 مللي أمبير في الساعة | وحدة: | جزء في المليون، ملغم/م3، %VOL، %LEL |
| حجم العبوة الواحدة:: | 131 سم * 83 سم * 35 سم | وزن:: | 240 جرام |
| درجة الحماية: | IP65 |

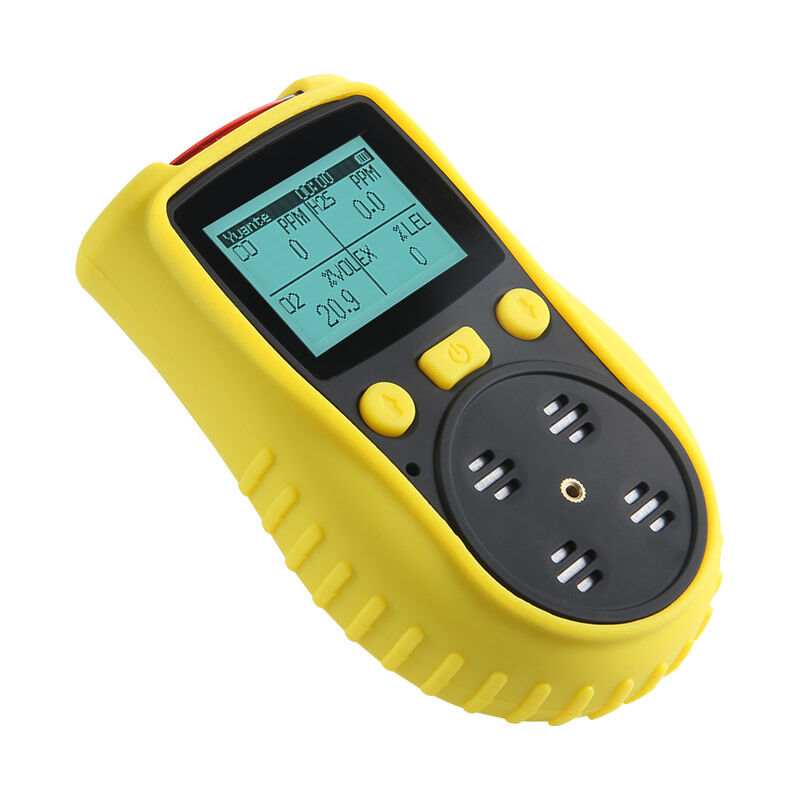

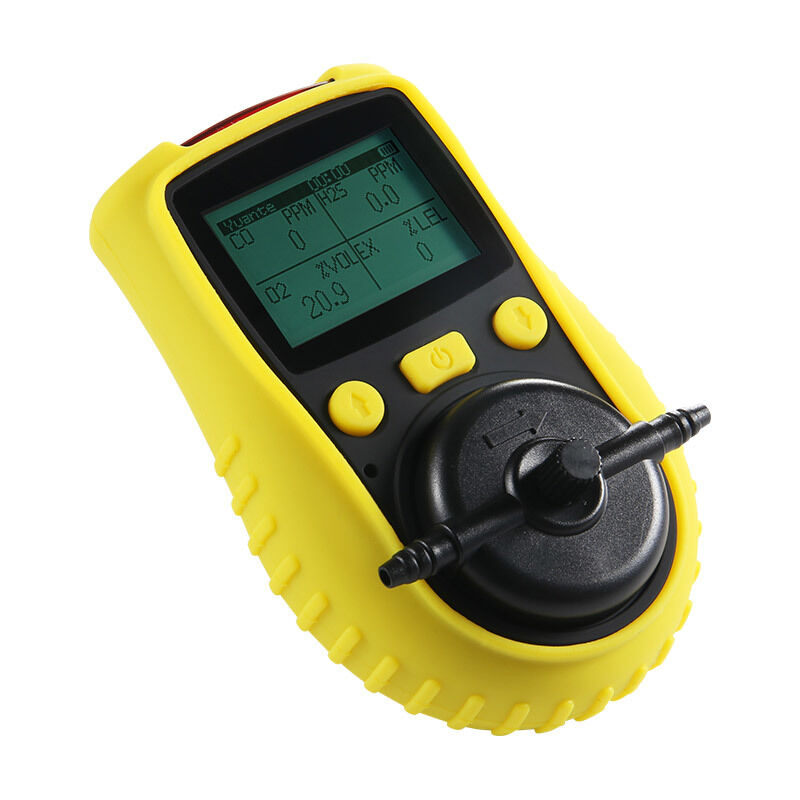

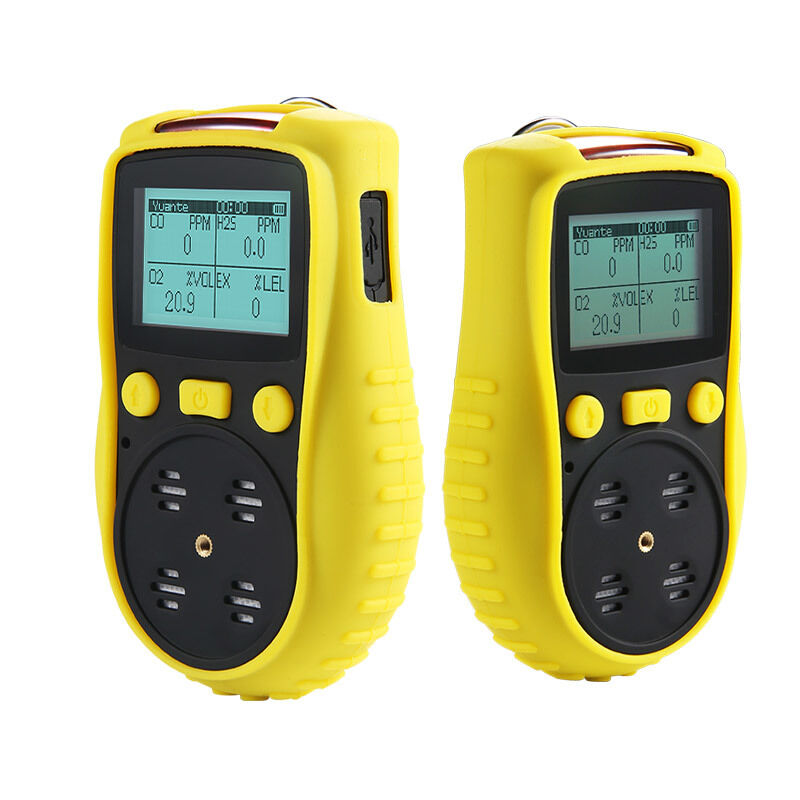

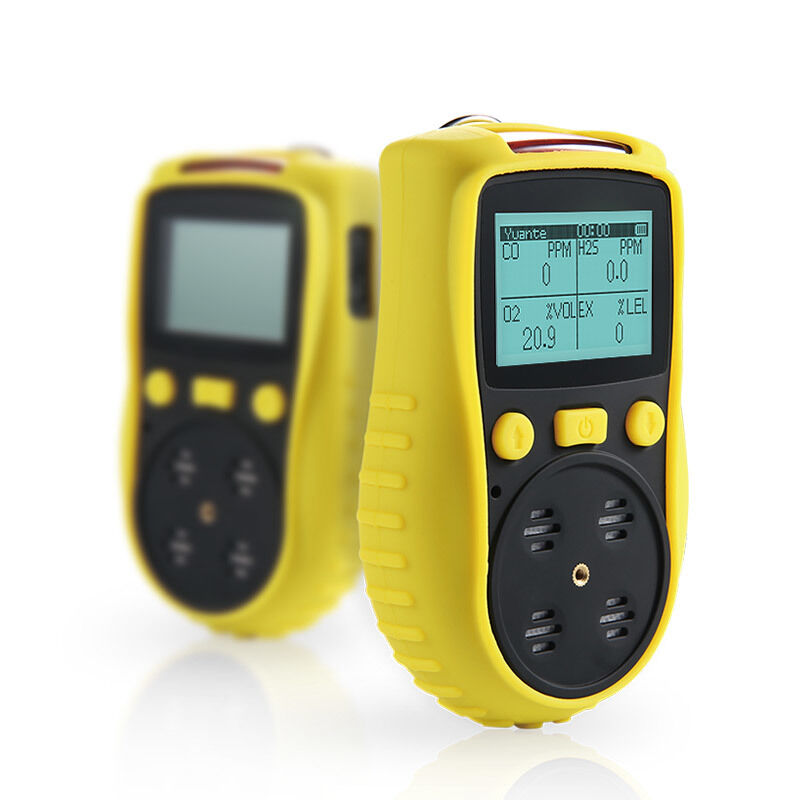

YT-1200H Portable HCL Gas Detector
The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.
The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.
| Parameter | Value |
|---|---|
| Gas Detected | Specified according to application |
| Detection Principle | Diffusion |
| Sensor Type | Specified according to application |
| Measuring Range | Specified according to application |
| Resolution | Specified according to application |
| Precision | <1-5% F.S. |
| Display | Monochrome dot matrix 128×128 LCD graphic display |
| Backlight | Settable time; auto-on during alarm |
| Data Logging | Optional: 100,000 readings (10-3600 sec interval) |
| Event Logging | 100 event records (standard, viewable on device) |
| Language | Chinese / English |
| Alarm Type | Sound, light, vibration |
| Battery | 3.7V rechargeable lithium battery, 2500mAh |
| Working Time | 14h continuous (4 gases); 200h (without LEL sensor) |
| Charger | Travel charger; charging time 4-6h |
| Explosion-Proof Grade | Ex ia IIC T4 |
| Protection Grade | IP65 |
| Working Temperature | 10°C - 50°C |
| Working Humidity | 15 - 95% RH |
| Housing Material | ABS + leather case |
| Dimensions (L × W × H) | 131 × 83 × 35 mm |
| Weight | 240g |
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
