| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | Safegas |
| إصدار الشهادات: | IECEx/ATEX/EMC |
| رقم الموديل: | الحد الأدنى |
| وثيقة: | MiniMeta Datasheet.pdf |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كرتون |
| وقت التسليم: | 3 أيام عمل |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 100 قطعة/يوم |
| نوع المستشعر: | مستشعر كهروكيميائي | درجة حرارة التشغيل: | -20 درجة مئوية إلى 50 درجة مئوية |
|---|---|---|---|
| مادة: | جهاز كمبيوتر + ABS | طريقة أخذ العينات: | الانتشار |
| قياس الغاز: | O2 | لون المنتج: | أسود |
| درجة حرارة: | -10 ℃ ~ 55 ℃ | الوزن الإجمالي: | 125 جرام |
| مبدأ الكشف: | الكهروكيميائية (O2) | اسم آخر: | جهاز اختبار غاز واحد |
| البعد: | 90 * 60 * 33 ملم | يتراوح: | 0-30% المجلد |
Professional-grade single gas detector designed for industrial oxygen concentration monitoring with a measurement range of 0-30% VOL. Certified for use in hazardous environments with both IECEx and ATEX approvals.
Safety Certifications: IECEx and ATEX Certified for hazardous area operation
| Principle: | Electrochemical | Gas Detected: | O2 |
|---|---|---|---|
| Detection Principle: | Diffusion | Measure Range: | 0-30%VOL |
| Resolution: | 0.1%VOL | Accuracy: | ≤±2-5%FS |
| Response Time(T90): | 15 ~ 30s | Alarm Mode: | Sound, Light And Vibration Alarm |
| Alarm Type: | Low Alarm, High Alarm, STEL, TWA, Low Battery | Power Supply Mode:: | 3.6V Dry Battery |
| Explosion-proof Certification: | IECEx, ATEX | Protection Class: | IP66/68 |
| Working Temperature: | -20℃ ~ 55℃ | Working Humidity (non-condensing): | 0~95%RH |
| Weight: | 125g(With Clip And Battery) | ||
| Highlight: | IECEx and ATEX Certified Portable O2 Gas Detector, Mini Size O2 Gas Detector | ||

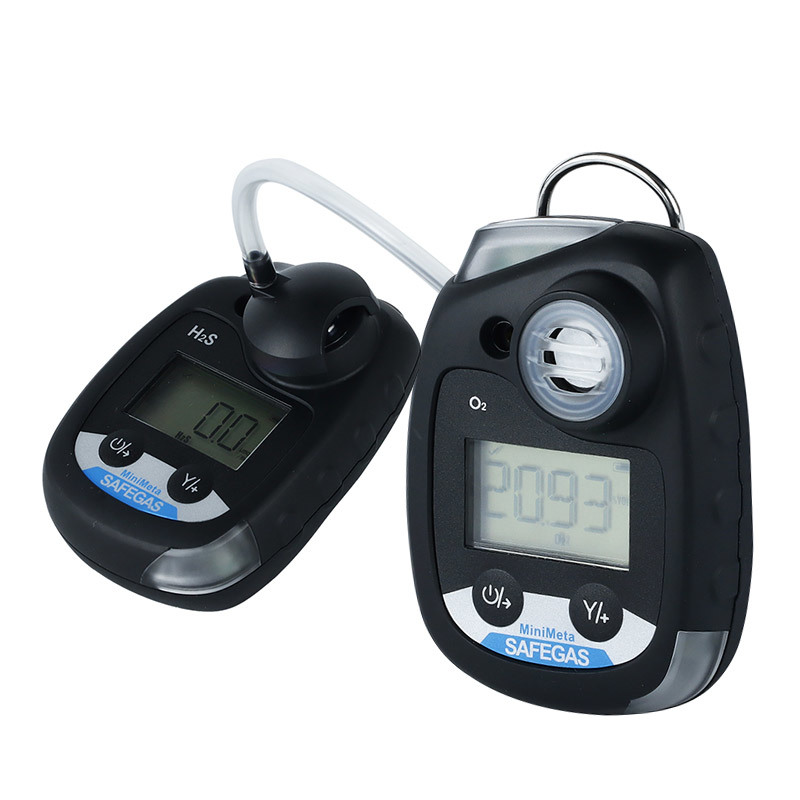

MiniMeta is a highly reliable and versatile single-gas detector with IECEx, ATEX, and EMC certifications. These international certifications ensure compliance with the strictest safety standards for explosive atmospheres and electromagnetic compatibility, making it suitable for hazardous environments worldwide. Specifically designed for oxygen (O₂) monitoring, it provides accurate and stable readings for both oxygen deficiency and oxygen enrichment conditions.
Precise Oxygen Detection – Equipped with a high-performance electrochemical sensor, MiniMeta delivers accurate real-time measurement of oxygen concentration (0–30% Vol). Ideal for confined space entry, industrial safety, laboratory, and environmental monitoring applications.
User-Friendly Design – Simple one-button operation, and loud audible/visual/vibration alarms ensure immediate user awareness in critical situations.
Replaceable Components – Both the battery and the oxygen sensor are field-replaceable, extending the device's service life and lowering long-term maintenance costs.
Cost-Effective Solution – A budget-friendly yet high-quality gas detector for long-term ownership, offering continuous protection against hypoxia (O₂ deficiency) or hyperoxia (O₂ enrichment).
IP68 water‑ and dust‑resistant case for harsh environments
Ultra‑low power consumption with up to 2 years standby time – no battery charging or calibration required during normal operation*
Optional docking station for daily bump test and calibration
Optional event and data logging function to track exposure records
Self‑test function – automatically checks sensor and battery status for improved safety
Compact, lightweight design with a back clip for easy carrying on clothing or belts
95dB @ 30cm buzzer alarm, two high‑bright red LED lights, and vibration alarm for clear alerts
Real‑time O₂ reading, plus TWA, STEL, MAX, MIN values displayed on screen
*For oxygen sensors, long-term exposure to air may gradually affect calibration; periodic bump testing is recommended.
Portable gas detector (O₂): 1 piece
Calibration cap: 1 piece
User manual: 1 piece
Certificate of conformity / Warranty card: 1 piece
