| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | SAFEGAS |
| إصدار الشهادات: | ATEX/IECEX |
| رقم الموديل: | SG100-D |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | تعبئة حقيبة الألومنيوم |
| وقت التسليم: | 3 أيام عمل |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 100 قطعة/يوم |
| اكتشف الغاز: | CO/H2S/O2/مستوى الحد الأدنى للانبعاثات | قياس النطاق والقرار: | LEL:0-100%LEL،O2:0-30%vol،CO:0-1000ppm،H2S:0-100ppm |
|---|---|---|---|
| دقة: | ≤±2%FS أو ±10% (يعتمد على المستشعر) | درجة الحماية: | IP66/68 |
| لاسلكي: | لورا، 4G ((اختياري) | درجة حرارة العمل: | 0 درجة مئوية إلى 70 درجة مئوية (مستشعر تحفيزي)، -20 درجة مئوية إلى 50 درجة مئوية (مستشعر الكيمياء ال |
| مقاس: | 178*129*70 ملم | وزن: | 1.4 كجم (بدون حامل تثبيت، ضوء إنذار) |
| تتابع: | 3 إرسالات، بما في ذلك إرسال الإنذار منخفض/عالي/إرسال إنذار خطأ ((اختياري) | درجة مقاومة للانفجار:: | IECEX: Ex db IIC T6 Gb، Ex db ia IIC T6 Gb ； ATEX: Ex db IIC T6 Gb، Ex db ia IIC T6 Gb |
| إبراز: | Explosion-Proof Multi Gas Detector,Continuous Monitoring Fixed Gas Detector,IP66/68 4 In 1 Gas Detector,Continuous Monitoring Fixed Gas Detector,IP66/68 4 In 1 Gas Detector |
||
SG100-D Series 4-in-1 Fixed Gas Detector
Intelligent hot-swappable fixed multi-gas detector for continuous monitoring of LEL, CO, H2S, and O2 gases in industrial environments.
Product Overview
The SG100-D series is an intelligent hot-swappable fixed multi-gas detector designed for easy maintenance after installation. This single unit continuously monitors four different gases simultaneously. Certified with IECEx and ATEX certifications, it achieves explosion level Ex db IIC T6 intrinsically safe grade. Featuring a magnetic wand design, it enables safe and convenient menu navigation in explosion-prone areas.

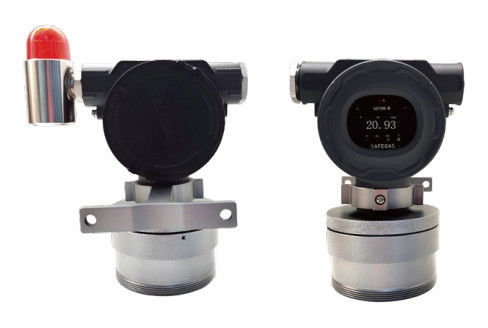

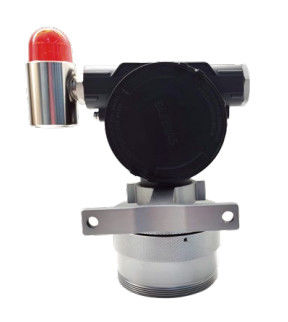

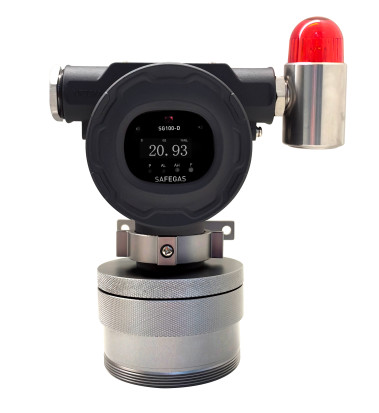

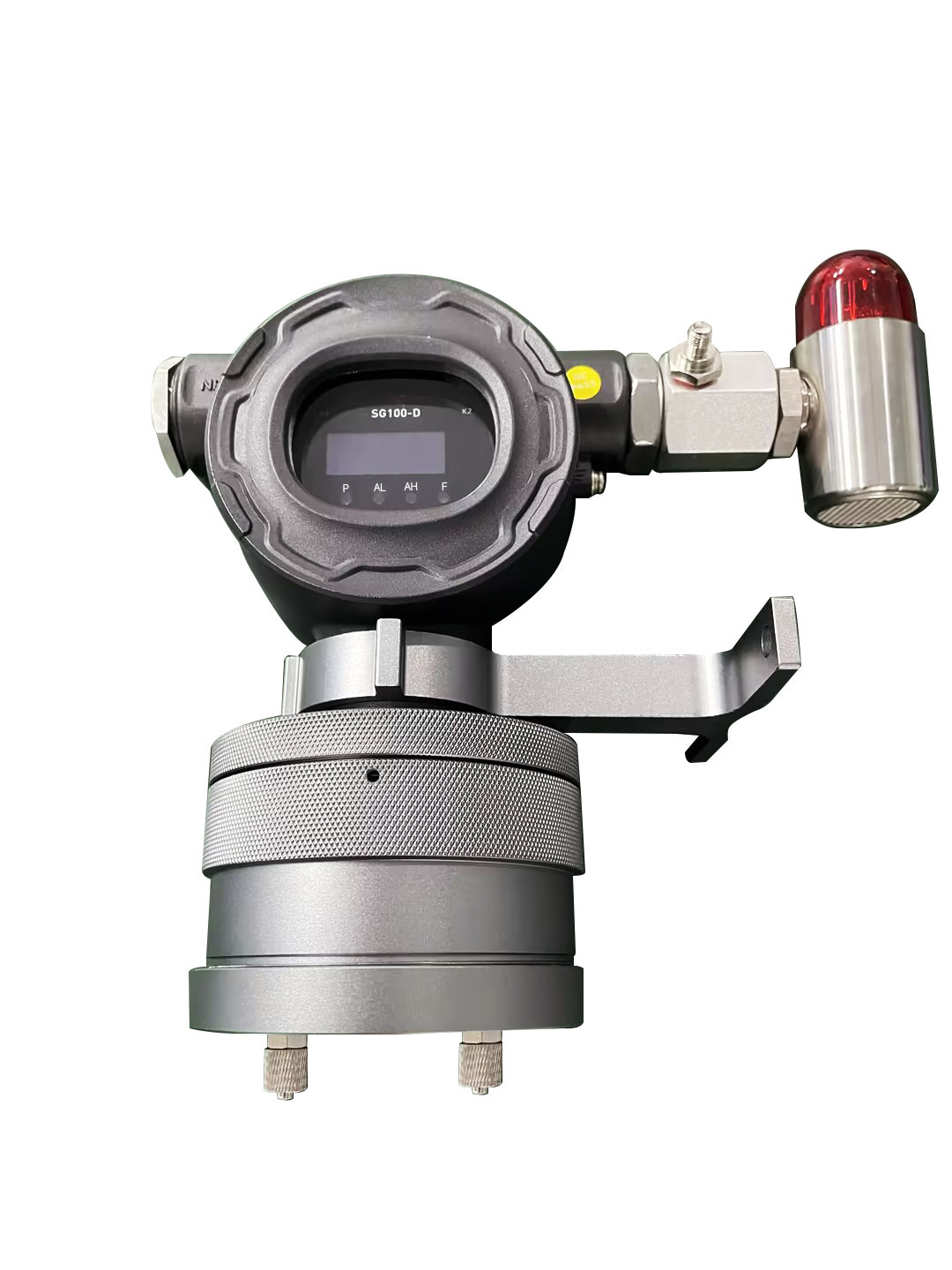

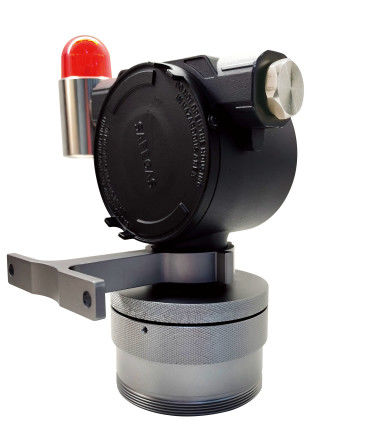

Product Images
Key Advantages
Technical Specifications
| Parameter | Specification |
|---|---|
| Detected Gases | CO / H2S / O2 / LEL |
| Detection Principle | Catalytic (LEL) / Electrochemical (O2/CO/H2S) |
| Measurement Range | LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm |
| Resolution | LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm |
| Installation Method | Wall-mounted |
| Data Storage | 1000 sets per channel, downloadable via GPC |
| Precision | ≤±2%FS or ±10% (sensor dependent) |
| Response Time | T90 < 60s (sensor dependent) |
| Repeatability | ±2% F.S |
| Operating Temperature | -40℃ to 70℃ (catalytic sensor), -20℃ to 50℃ (electrochemical sensor) |
| Operating Humidity | 10-95% RH (non-condensing) |
| Explosion-Proof Rating | IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection Degree | IP66/IP68 |
| Power Supply | 12-30V DC |
| Dimensions | 178 × 129 × 70mm |
| Weight | 1.4kg (without mounting bracket and alarm light) |
| Certifications | CE, CNEX explosion proof certificate, CMC, IECEx, ATEX |
| Warranty | 12 months |
Standard Configuration
Why Choose Safegas?
For years, Safegas has maintained the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Our corporate culture emphasizes collaboration, talent development, and customer-centric service to earn trust and support from clients worldwide.
