IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant

المعلومات الأساسية
مكان المنشأ: الصين
اسم العلامة التجارية: SAFEGAS
إصدار الشهادات: ATEX/EMC/IECEX
رقم الموديل: Sky3000
الحد الأدنى لكمية: 1
الأسعار: قابل للتفاوض
تفاصيل التغليف: حقيبة الألومنيوم
وقت التسليم: 3-5 أيام العمل
شروط الدفع: ر/ر
القدرة على العرض: 1000 قطعة في الشهر
معلومات تفصيلية
اكتشف الغاز: لتكون محدد مبدأ الكشف: لتكون محدد
مقياس المدى: محدد حسب التطبيق. دقة: محدد حسب التطبيق.
وقت الاستجابة: ≤20 ثانية دقة: ≤±1-5%F.S باستثناء الغازات الخاصة
لغة: الصينية/الإنجليزية/الروسية/البولندية (يمكن تخصيص المزيد من اللغة) الاختبار تلقائيًا والمعايرة بعد الطاقة: بما في ذلك إعادة التعيين ، القيمة القصوى (الحد الأقصى) ، الحد الأدنى للقيمة (دقيقة) ، ستيل ، قيمة TW
وحدة: جزء في المليون ، ملغ/م ، ٪ ليل ، ٪ عرض: LCD (160 × 96) ، 180 درجة تدوير
سجل البيانات: 100000 قراءات ، فاصل التخزين قابل للتعديل من 5 إلى 3600 ثانية ، يمكن تصدير البيانات إلى جهاز كمبيوتر
إبراز:

IECEX certified multi gas detector,ATEX portable gas detector,IP67 waterproof multi gas detector

,

ATEX portable gas detector

,

IP67 waterproof multi gas detector


منتوج وصف

Product Name

SKY3000 Portable Pumping Gas Detector

Product Overview

SKY3000 is a IECEX/ATEX/EMC certified portable multi gas detector. It is suction type with built-in pump to detect up to 6 gas types in 1 device. The standard gas type is multi 4 (CO H2S O2 LEL) gases. There are thousands of gas types for selection to support very wide applications. It’s with wireless communication so user can access to real-time data and alarm status remotely. The standard datalog function to export data to PC and no need software.

Product Advantage

  1. IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable designs.
  2. Standard man down alarm function
  3. Real time value, TWA, STEL, MAX, MIN multiple numerical display
  4. One press to restore factory settings.
  5. Large graphical display can rotate 180°
  6. Standard water trap filter to protect the sensor
  7. With docking station to perform daily bump test and calibration (Optional)
  8. Wireless data transmission including Lora, Bluetooth (Optional)
  9. Support backlight function the backlight time can be manually set
  10. Low power consumption, long stand by time
  11. Support firmware upgrade remotely

Technical parameters

Gas Detected
To be specified
Detection Principle
To be specified
Measure range
Specified according to application.
Resolution
Specified according to application.
Response time
≤20 seconds
Precision
≤±1-5%F.S except for special gases
Language
Chinese/English/Russian/Polish (More language can be customized)
Automatically test and calibrate after power-on
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit
PPM, mg/m³, %LEL, %VOL
Display
LCD (160 x 96), 180° rotate
Backlight
Turned on automatically when alarming, the backlight time can be manually set
Data record
100,000 readings, the storage interval is adjustable from 5 to 3600 seconds, data can be exported to PC no need software
Alarm
95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on the screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery
3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours
More than 15 hours in continuous pumping mode
Charger
Travel charger with DC interface, charging time ≥ 4 hours
Working temperature
-20℃~+50℃
Explosion-proof grade
IECEx: Ex ia IIC T4 Ga; ATEX: II 1G Ex ia IIC T4 Ga
Humidity
10~90%RH (no condensation)
Certification (EU regulations)
2004/34/UE (ATEX)
Protection grade
IP67
Environmental pressure
86~106Kpa
Size
157×84.5×59.5mm (including back clip/water trap filter) (length × width × height)
Weight
365g (including battery, belt clip and filter)

Product Images

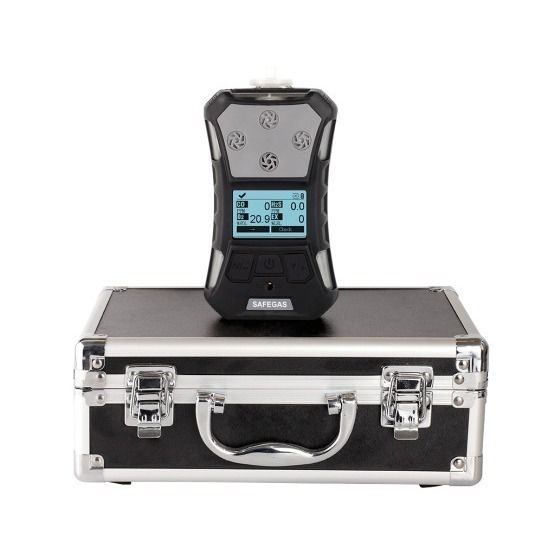

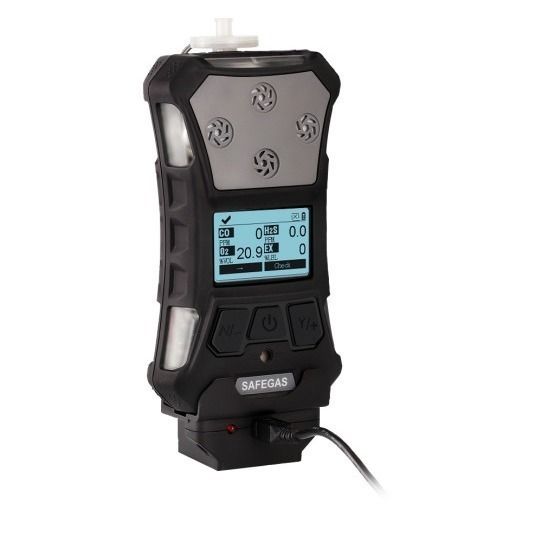

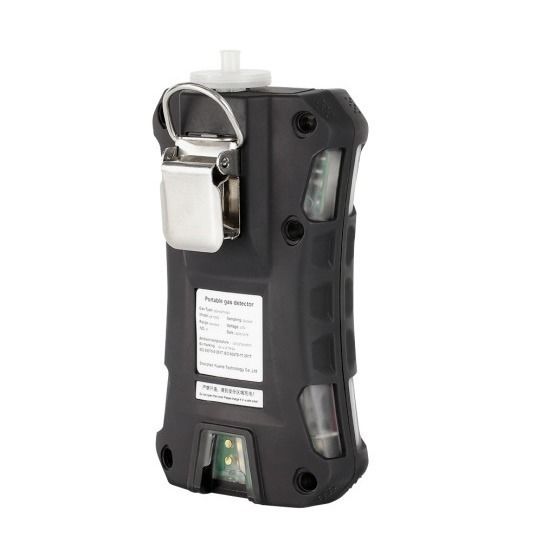

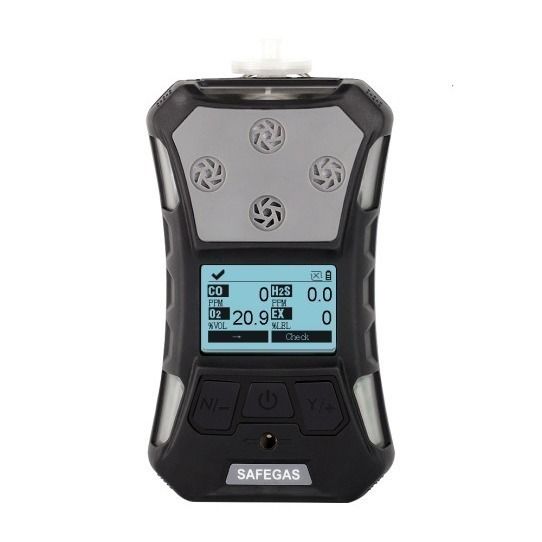

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 0

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 1

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 2

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 3

Company Profile

Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic,Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.

For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, production and maintenance, and has a deep understanding of the concept of customer oriented and has the service spirit through the company operation and management, to win the trust and support from customers.

The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.

R&D team

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 4 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 5 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 6 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 7 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 8

Gas Detection Capabilities

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 9 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 10 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 11

Product Line

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 12

Certifications

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 13

Cooperated Clients

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 14

FAQ

IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 15 IECEX/ATEX/EMC Certified Portable Multi Gas Detector IP67 Water & Dust Resistant 16

Why Choose Us

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(20.00%),North America(17.00%),South America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Central America(5.00%),Africa(3.00%),Oceania(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Portable Gas Detectors, Fixed Gas Detectors, Gas Analyzers, Multi Gas Detectors

4. Why should you buy from us not from other suppliers?
We have independent dust-free production workshop, modern production equipment, and professional staff. We implement flexible and competitive price and diversified sales strategy. We provide 24h/day service to users, rapid in response, technical guidance.

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
