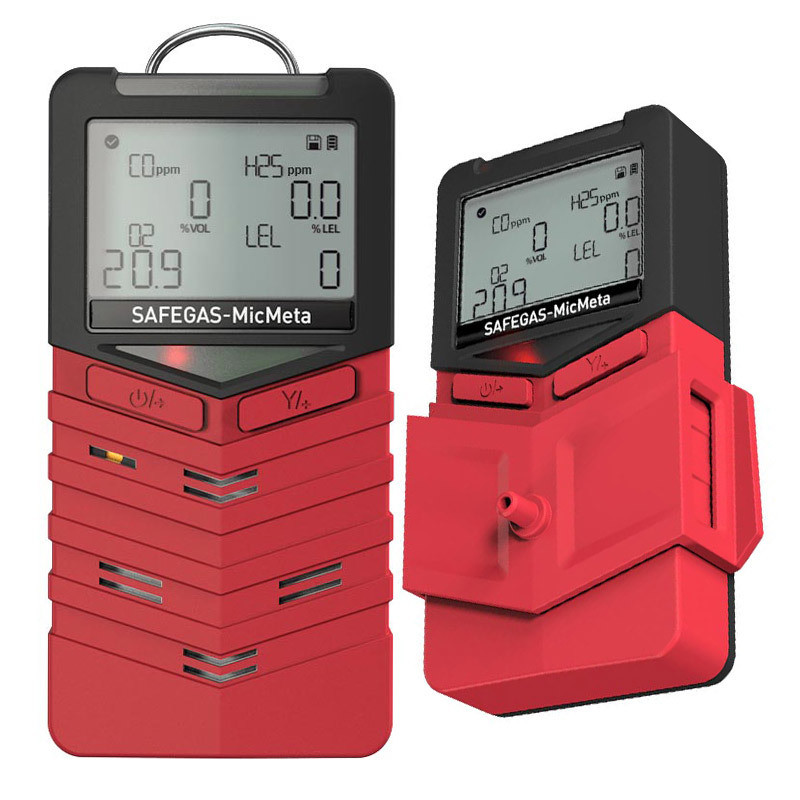

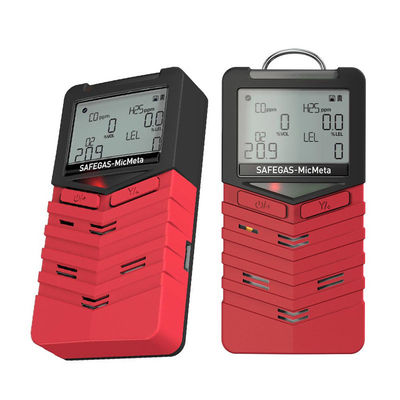

MicMeta Multi-Gas Detector with Imported Sensors for NH₃/H₂S/CO₂/CH₄ – IP66/IP68 Waterproof and Man Down Alarm

Professional multi-gas detection system featuring imported sensors for monitoring NH₃, H₂S, CO₂, and CH₄ gases. Engineered for demanding industrial environments with robust protection and advanced safety features.

A rugged, IECEx/ATEX/EMC certified diffusion multi-gas detector for wastewater treatment and landfill applications. Simultaneously monitors up to 4 gases – ammonia (NH₃), hydrogen sulfide (H₂S), carbon dioxide (CO₂), methane (CH₄) – with customizable ranges and resolutions. Features IP66/IP68 water/dust resistance, 1.5m drop resistance, man down alarm, 1000 data records + 100 event records, 24-hour battery, and triple alarm (95dB buzzer + vibration + flashing red bars). Optional LoRa/Bluetooth wireless and docking station for bump test/calibration.

1. Compact and Lightweight
   Small size with light weight (240g), this instrument is robust and durable, can endure drops of up to 1.5 meters. With IP66/IP68, it can effectively waterproof and dustproof.
2. User-Friendly Operation
   With two buttons to operate, make the opetration easier.
3. Bright Visual Alarm
   It features a wide-angle visual alarm bar for increased visibility.
4. EMC Tested
   It has successully passed EMC anti-static interference tests, ensuring reliable operation in various environments.
5. Ergonomic Design
   It comes with a comfortable, wear-resistant back clip that is lightweight for easy carrying.

• Multi-gas detection for NH₃, H₂S, CO₂, and CH₄
• High-quality imported sensors for accurate readings
• IP66/IP68 rated for extreme environmental conditions
• Man Down Alarm for personnel safety monitoring
• 24-hour continuous battery operation
• Optional LoRa and Bluetooth connectivity
• Comprehensive data logging capabilities

In wastewater treatment plants, gases such as H₂S (from sludge digestion), NH₃ (from decomposition), and CH₄ (from anaerobic processes) pose explosion and toxicity risks. CO₂ can accumulate in enclosed spaces causing asphyxiation. MicMeta provides continuous personal monitoring for workers entering lift stations, digesters, headworks, and landfill gas collection areas. The man down alarm is critical for lone workers.

1. What is the response time (T90)?
   ≤30 seconds.
2. What are the alarm types?

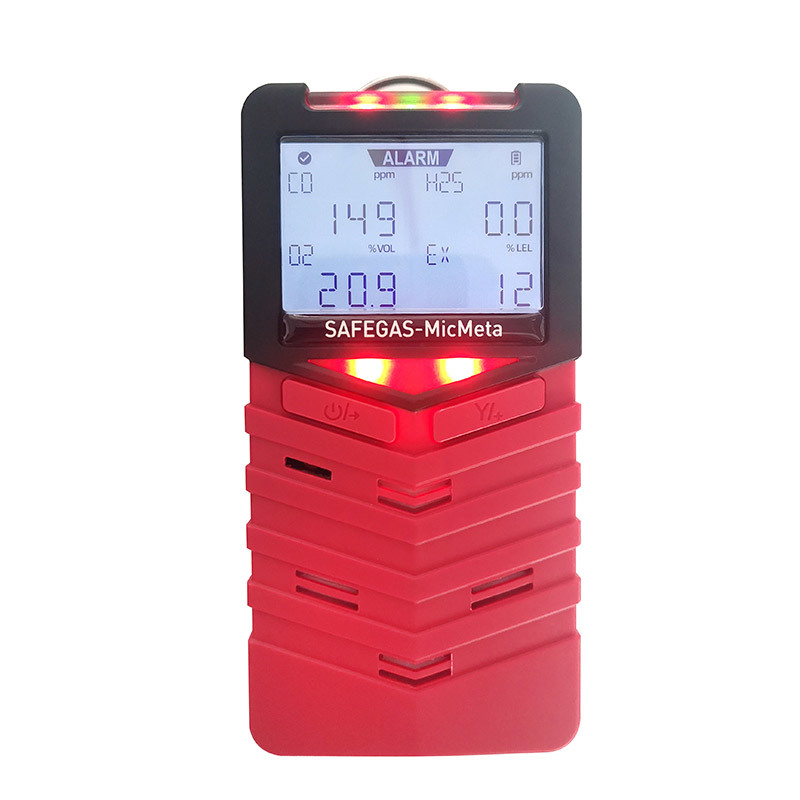

   95dB buzzer (@30cm), vibration alarm, flashing red bars, and alarm status indication on screen; alarm latched; diagnostic alarm; battery under-voltage alarm; man down alarm.
3. Can I adjust alarm set points?
   Yes – alarm set points for all sensors are user adjustable.
4. How long does the battery last?
   Standby time 24 hours per charge. Charging time <6 hours.
5. What is the protection rating?
   IP66/IP68 water & dust resistant.
6. Is there data logging?
   Standard: 1000 data records and 100 event records.
7. Does it have a man down alarm?
   Yes – standard.
8. What wireless options are available?
   Bluetooth (optional) and LoRa (optional).
9. Can I switch gas units?
   Yes – ppm and mg/m³ can be switched by one key; concentration value automatically converted.
10. Is the battery rechargeable?
    Yes – 3.7V rechargeable lithium battery, 2300mAh.
11. What is the weight?
    240g (with lithium battery).
12. What certifications does it have?
    IECEx: Ex ia IIC T4 Ga, Ex ia I Ma; ATEX (II) 1G Ex ia IIC T4 Ga, Ex ia I Ma.
13. Can I use it in coal mines?
    Yes – Ex ia I Ma is suitable for coal mines.
14. What gases can it detect?
    Standard multi-4 (CO/H₂S/O₂/LEL) and hundreds of selectable gases, including NH₃, H₂S, CO₂, CH₄.
15. Is there a self-test function?
    Yes – automatic self-test improves safety.

Shenzhen YuanTe Technology Co., Ltd. (Safegas) – Established in 2010, YuanTe specializes in the R&D, manufacturing, and sales of gas detection equipment and integrated systems for over 16 years. The company serves industries including oil & gas, chemicals, energy, environmental protection, electronics, municipal engineering, agriculture, forestry, and household appliances.

Key advantages:

• International certifications – IECEx, ATEX, EMC certified for explosive atmospheres.
• Full product range – Portable detectors, fixed transmitters, analyzers, control panels, docking stations, accessories.
• Wide gas coverage – Hundreds of gases (toxic, flammable, oxygen, VOCs, CO₂, refrigerants, etc.).
• Quality management – ISO9001 and ISO45001 certified; over 100 independent intellectual property patents.
• High production capacity – Over 80,000 units per year; fast delivery (5–7 working days typical).
• Global support – 24/7 after-sales service and tailored solutions.
